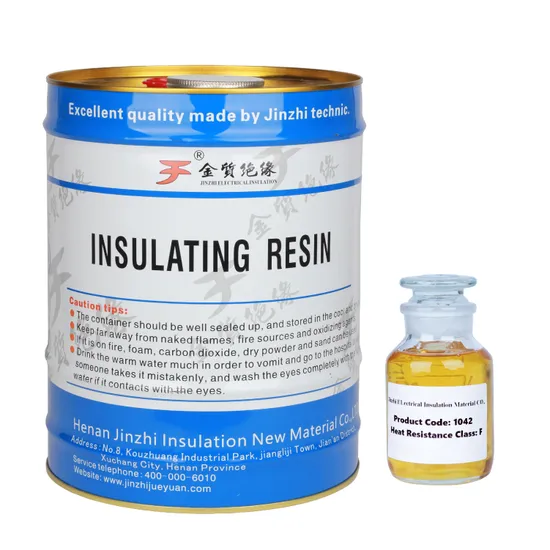

Insulation Paint F Class 1504 Epoxy Resin Self Drying Insulation Varnish Insulation Material

• Overview
• Product Description
• Certifications
• FAQ

Overview

Basic Info.

Model NO.	1504
Material	Resin
Maximum Voltage	20KV~100KV
Thermal Rating	F 155
Name	Insulation Varnish
Heat Resistance Class	F 155 Degree
Advantage	Moisture and Mold Resistance
Chemical Corrosion Resistance	Yes
Paint Film After Drying	Flat and Bright
Composite	Epoxy Resin
Type	Liquid
Chemistry	Organic Insulation
Classification	Hybrid Insulation Materials
Certification	ISO9001
Brand	Jinzhi
Transport Package	Bottle or Barrel
Specification	3kg
Trademark	Jinzhi
Origin	China
Production Capacity	12000 Metric Tons/Year

Packaging & Delivery

Package Size100.00cm * 50.00cm * 20.00cm Package Gross Weight6.000kg

Product Description

Fast drying insulation paint 1504 Epoxy Resin self drying insulation varnish can be used in a long time use under teperature of 155 degree, Paint film has good mold and moisture resistance, chemical corrosion resistance and better electrical performance after drying. Widely used in F class motor and transformer insulation which is not convenient for baking or repair insulation treatment.

Q: How will you pack the product?A: We pack with paper cartons. Q: Do you accept OEM?A: Yes, we do. Q: Do you provide free sample? And how many days it will take?A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 workingdays and it will take 3-7days on the transportation. Q: What's your delivery time?A: We are factory, so we can efficiently control the production time, and then for the delivery time, it is 5-20 working days. Q: Which certification do you have?A: The plant has passed the certificate of lSO 9001 quality system certification; Q: What's your payment term?A: We accept T/T,L/C, Western Union, Paypal,Escrow,or customized if it is acceptable. Q: Which shipping method is there?
A: Air,Sea, Land, Rail,Choose the most suitable shipping method according to the quantity of your goods.

Product Description

Brand Name	Henan Jinzhi
Model Number	1504
Type	fast drying nsulation varnish
Application	High Voltage
Rated Voltage	220V
Grade	Class F
Breakdown Voltage	40KV
Storage life	12 months
Viscosity, No. 4 viscometer,(23±1ºC)	25-60s
Solid content,(130±2ºC,2h)	42%-48%
Paint film drying time(200±2ºC)	≤2h
Temperature	155ºC
